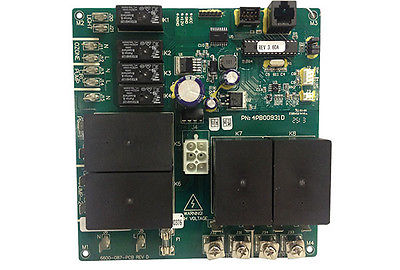

Sundance Spas - Circuit Board 2-PUMP Led 2014, Circ, LX-15 Sweetwater - 6600-726

<img src="http://ti2.auctiva.com/web/aswCredit.gif" border="0"><br><a href="http://www.auctiva.com/? How=scLnk0&how2=bd1K%2fYPiW93qYnmYHnb77i5uaR92mdissQLqjaXNdJrrw3nQQlOzqH%2f9c3n%2bX%2bC8MyUvJXVHCXug6JDw4bykbkmhe2FQ%2bFkA9A7FOPtb3rw6tP8Y9ebqRDvmFXOGe6oSoiRCu7xfWX%2bKlO5CAycT2Q%3d%3d" target="_blank"><img src="http://ti2.auctiva.com/images/sc1line0.gif" border="0"></a> Sundance Spas - Circuit Board 2-PUMP LED 2014, CIRC, LX-15 Sweetwater - 6600-726 Replaces Part Number: 6600-288 Replacement Option For: AI # SD6000-167 / MFG 6000-167AI# SD6600-288 / MFG 6600-288 PCB:780 R3.56 and LX-15 with CircAI# SD6600-088 / MFG 6600-088 PCB:780 R3.56 6600-288 Replaces: 6600-088 Replaces: Revisions: R6.16, R6.17, R3.54, R3.56 Replaces Sundance 6600-088. Used on the following spas: Jacuzzi J-320, J-330, J-340 as well as Sundance 2003+ Palermo, Bahia, and Cayman. Jumper settings are as follows: Jumper 1 - On - 15A, Off - 50A Jumper 2 - On - 2 pumps, Off - 1 pump Jumper 3 - Used along with Jumper 2 Jumper 4 - On - Celsius temp display, Off - Fahrenheit temp display 2002+ Jacuzzi Circuit Board for: J-300 Series LED Circuit Board 6600-288 is for following models: 1. 2002-2006 J-335, J-345, 2005-2006 J-325 2.

2002-2003 J-325, 3.2007 J-325 (240 Volt Model). As of 2007 the J-300 Series are all LED models. 4. 2007+ J-365, J-355, J-345, J-335 5. 2008+ J-375 This board (6600-288) is for circulation pump systems (see 6000-125 for circulation pump). Comes with a Series 3.56 chip.If your circuit board has a Software Chip that begins with a 3, then this is the correct series board.

Sundance has revised this chip several times, we send you the board with the current chip of 3.57. If you have an older board without a Circulation pump, then you need a board with a Series Chip that starts with a 5. If you have an older board WITHOUT a Circulation pump (see 6000-125 for picture of circulation pump), then you need a board with a Series Chip that starts with a 5. This would be a 6600-287 board. ALL 6600-287, 6600-087 boards (without circulation pump logic, Chip 5.54)and 6600-288, 6600-088 (with Circulation Pump Logic, Chip 3.56 or higher)are identical but use different micro chips.

Check our classifieds board store and website for other great deals! Our company name is Pool Spa Supplies, and our reputation is exemplary. Please add us to your list of favorite sellers and visit our store often. Thank you for your business. Looking for hard to find pool and spa parts?

Unsure of what you need? Give us a call, we can help! Why choose POOL SPA SUPPLIES? Because with 25 years in the pool and spa service industry, we know what it means to provide good customer service. We are open five days a week, from 8am to 5pm, and our phone lines are not automated.

If you buy a part from us and need help with the installation, just call us and we will walk you through it. Our technicians will even help you program your spa control. Tom can rattle off part numbers and replacements faster than you say POOL SPA SUPPLIES. Just call us, and let us use our expertise! We sure don't get to talk about pools and spas when we go home after work, as that could bore our loved ones.
