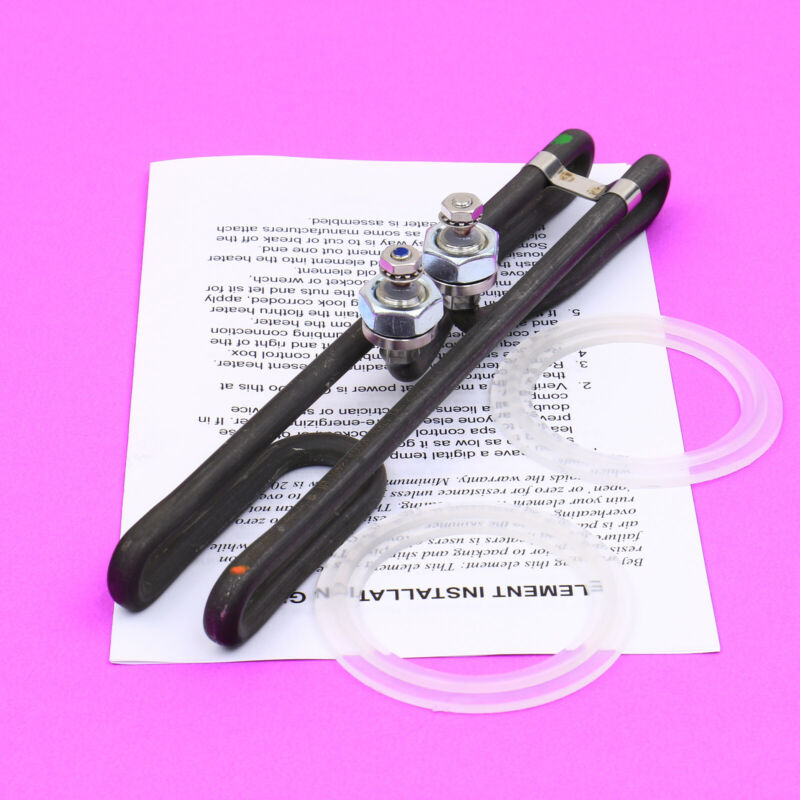

Rigid Spa Heater Element 5.5kw Hot Tub Heating Coil 5.5 Middle Terminal 9" 230v

This element is very rigid and is 2.0" tall, and recommended only for experienced spa technicians, it requires a bit of patience and finesse to install as it, as it is a tightfit in most heater housings, and can be damaged if not worked into place very carefully. See our other listings for middle terminal elements that are easier to install. Spa Heater Element MIDDLE Terminals Style, 9.1 inches overall length, Flo-Thru Hot Tub Heating Coil 5.5kw 230/115v, new middle terminal Flo-Thru heater element, Incoloy 800 sheath, Stainless bulkhead fittings, large sealing o-rings, bulkheads are epoxy sealed on the backside too. Rated 240 volts 5.5kw AND 120 volts 1.375kw Heater housing gaskets (2) included. Certified, guaranteed good resistance and thorough ground fault tested, prior to shipping.

Over 31 electrical tests performed. Includes 2 new heater housing gaskets, standard size for flanged flo-thru heaters. Can be run on 230v as 5.5kw (5500 watts) or on 115v 1.375kw (1375 watts), fits flo-thru heaters requiring MIDDLE terminals. Includes an installation guide with tips on proper heating element startup (VERY important!). Please be very careful on startup procedure, do NOT put power to the heater until after the pump has run a good 10 minutes or more on high so all air is out of the system!!

In other words, do not turn up the temperature until you run the pump 10 mins on high speed by pressing the jets button. Sized for 2.25" diameter flo-thru heater housings with 1-1/4" terminal spacing, with 1/2" bulkhead holes in housing, these are all very common, standard dimensions. Overall length of this element is approximately 9.1" From Spa Pumps And More Not for housings smaller than 2.25" outside diameter, not for terminal spacing other than 1-1/4", not for hole size other than 1/2" terminal holes in housing, and not for replacing elements with offset, side terminals, please note. If you have a need for some other style or size, message us with those details please. For a proper fit you need your heater housing to conform to the details listed which again are: Stainless Steel Housing outside diameter must be 2.25" (2-1/4 inch) Housing hole size for terminals must be 1/2 inch.

Housing hole spacing must be 1-1/4 inch center to center. Housing must require an element with MIDDLE terminals. Housing must require an overall element length of approximately 9.1 inch. Shipping via ground is included in the price, and tracking will be uploaded to classifieds board for you. Thanks for looking!

Questions, message us please, we are here to help :)
